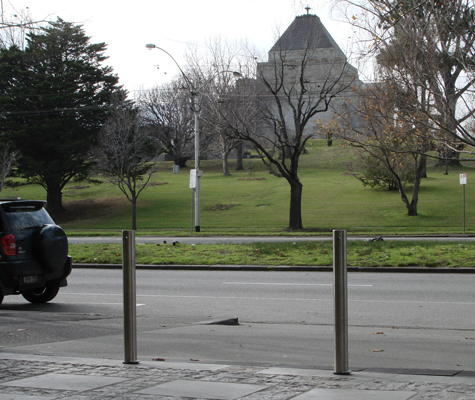

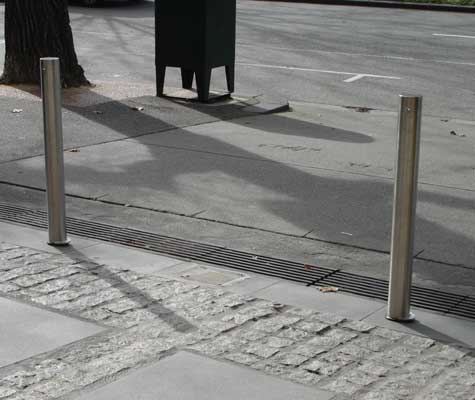

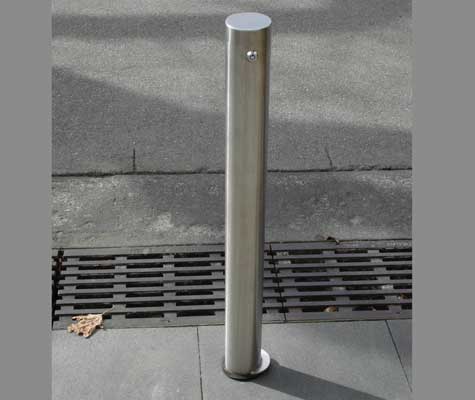

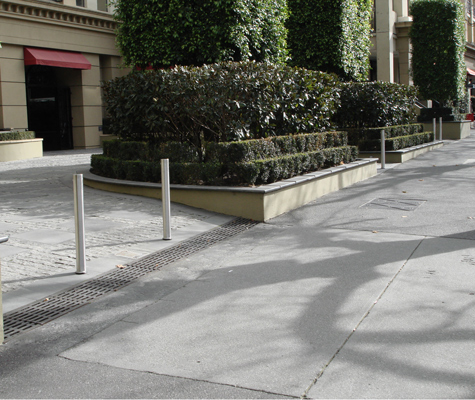

Vogue 125NB Stainless Steel Bollards
Vogue stainless steel bollards are an alternative for those looking for a stylish architectural bollard. This model is available in locking removable, fixed In-Situ and baseplate fixed.
Additional specification details are available within the Downloads and Resources tab on this page
Size: 100 x 150
Fixing Type: Commercial
Finish: New
Colour: Grey
Specifications Lorem Ipsum
You may also be interested in
$120.00Special Offer
Secure storage holder to suit 80NB locking removable bollards. Available with masonry anchors.
Holds 2 bollards 88.9mm OD
Original price was: $165.00.$120.00Current price is: $120.00.
LAPS high security bollards / Hostile Vehicle Mitigation Bollards (HVM) PAS68 rated.
Ideally suited for protecting entry points to large commercial buildings and government facilities against acts of terrorism.
Shallow Mounted Bollard Systems.
A shallow mount bollard system can be installed in concrete ranging from 305mm to 406.4mm depending on the level of protection required.
Fixed Or Removable Bollard Design
FB30(fixed)Â / RB30 (Removable)
Shallow Mount Fixed Bollard
Fixed in Situ bollard.
Engineered To Meet US Marshall Service Standards /PAS68 rated for 7.5T @ 80km/hr, must be installed to our specified engineered footing in an array of 5 or more bollards.
– PAS68: V/7,500(N2)/80/90:5/14
– Allowance made for Stainless Steel Sleeves – Marine Grade 316 Linished Level 4 finish
– Footing Depth – 150mm + Blinding Slab + 100mm allowance for FFL (Shallow mount Foundation)
1016mm Above Ground Bollard Height, – Bollard Diameter 203.2mm
Custom Decorative Colours Available or stainless steel marine grade 316 finish, level 4
Shallow Mount Removable Bollard
Engineered to perform against an impact of up to 7.5T @ 64km/hr, must be installed to our specified engineered footing in an array of 3 or more bollards.
– 305mm diameter
– Allowance made for Stainless Steel Sleeves – Grade 316 Linished Level 4 finish.
– Footing Depth – 112mm Shallow Foundation Plate & 280mm Socket + 100mm allowance for FFL
FB80 / RB80
- Fixed Or Removable Bollard Design
- US Depertment of State (DOS) Crash Certified K-4 (6803.88kg, 48.28 km/h) less than 1m penetration
- Engineered To Meet US Marshall Service Standards.
- 304.8mm Shallow Mount Foundation
- 1219.2mm Above Ground Bollard Height, – Bollard Diameter 203.2mm
- Custom Decorative Colours Available
Approved by the U.S. Department of Defense.
Crash ratings range from ASTM F2656 07 M50 (K-12 DOS), K-4 (DOS equal to ASTM F2656 07 M30), to US Marshall Service standards.
The Archer range of bollards are manufactured from aluminium pipe and are ideally suited to be installed on low risk sites. Available with four modes being Locking & Removable, Fixed In-situ, Fixed Baseplate and lighting.
See Resources and Downloads tab for additional information.
