Archer Bollards

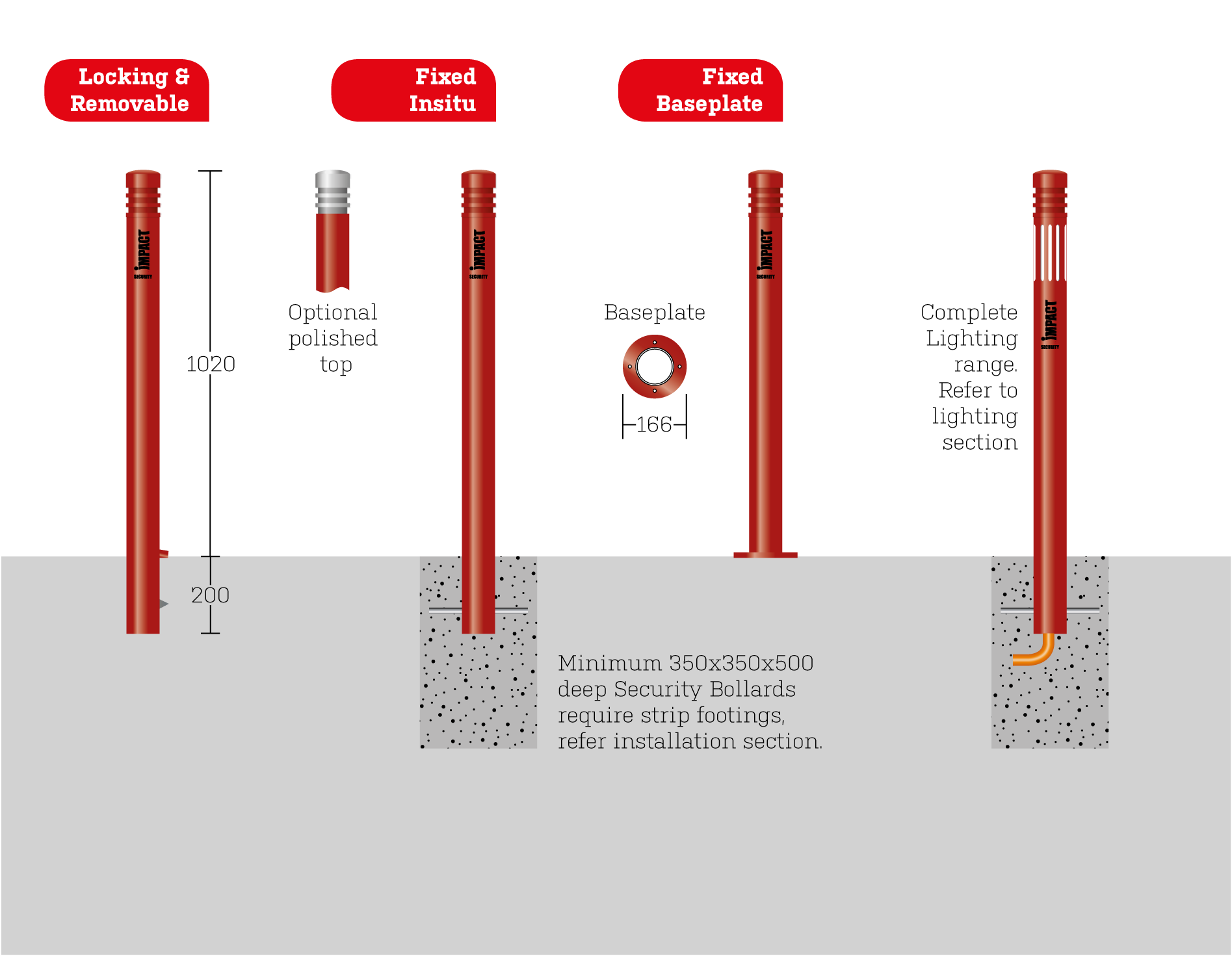

The Archer range of bollards are manufactured from aluminium pipe and are ideally suited to be installed on low risk sites. Available with four modes being Locking & Removable, Fixed In-situ, Fixed Baseplate and lighting.
See Resources and Downloads tab for additional information.
Size: 1200 x 130 x 130mm
Fixing Type: Fixed in ground, Locking and Removable and Baseplate fixed with anchors
Finish: Powdercoated
Colour: Standard Colours (Yellow and Black) other colours from the Dulux powdercoatings range
The Archer range of bollards are manufactured from aluminium pipe and are ideally suited to be installed on low risk sites. Available with four modes being Locking & Removable, Fixed In-situ, Fixed Base plate and also as a lighting bollard which can be either fixed or base plate mounted.
Bollards can be supplied with an optional polished cap.(Un-painted)
Lighting Option
The lighting options available are globes ranging from 8 Watts to 23 Watts. The fluorescent globes are designed for long life, low power and are available in Warm, Cool or Daylight temperatures.
The bollards require connection to 240v mains power and must be commissioned by a qualified electrician.
See the specifications tab on this page for additional information
You may also be interested in
$275.00Special Offer
The Spartan Impact Security® locking and removable bollards are by far the most popular bollards we sell. They are the preferred choice in the automotive industry to secure car yards, driveways, garage roller doors or any open space. Our bollards are used extensively in all areas including residential (protecting vehicles), commercial & industrial to protect people and property. Available in two models the Spartan and Spartan Plus Impact Security® bollards offer heavy duty protection through a product that has been around for more than 20 years.
Original price was: $310.00.$275.00Current price is: $275.00.
Our commercial bollards are designed various security functions including vehicle threats, protecting people and property and some are suitable for anti-terrorist projects. Originally designed to protect buildings, plant equipment these have a robust and sturdy design. They are fully galvanised pipe and vinyl or powder-coated to in a variety of finishes. The commercial range is designed for both commercial and industrial premises.
LAPS high security bollards / Hostile Vehicle Mitigation Bollards (HVM) PAS68 rated.
Ideally suited for protecting entry points to large commercial buildings and government facilities against acts of terrorism.
Shallow Mounted Bollard Systems.
A shallow mount bollard system can be installed in concrete ranging from 305mm to 406.4mm depending on the level of protection required.
Fixed Or Removable Bollard Design
FB30(fixed)Â / RB30 (Removable)
Shallow Mount Fixed Bollard
Fixed in Situ bollard.
Engineered To Meet US Marshall Service Standards /PAS68 rated for 7.5T @ 80km/hr, must be installed to our specified engineered footing in an array of 5 or more bollards.
– PAS68: V/7,500(N2)/80/90:5/14
– Allowance made for Stainless Steel Sleeves – Marine Grade 316 Linished Level 4 finish
– Footing Depth – 150mm + Blinding Slab + 100mm allowance for FFL (Shallow mount Foundation)
1016mm Above Ground Bollard Height, – Bollard Diameter 203.2mm
Custom Decorative Colours Available or stainless steel marine grade 316 finish, level 4
Shallow Mount Removable Bollard
Engineered to perform against an impact of up to 7.5T @ 64km/hr, must be installed to our specified engineered footing in an array of 3 or more bollards.
– 305mm diameter
– Allowance made for Stainless Steel Sleeves – Grade 316 Linished Level 4 finish.
– Footing Depth – 112mm Shallow Foundation Plate & 280mm Socket + 100mm allowance for FFL
FB80 / RB80
- Fixed Or Removable Bollard Design
- US Depertment of State (DOS) Crash Certified K-4 (6803.88kg, 48.28 km/h) less than 1m penetration
- Engineered To Meet US Marshall Service Standards.
- 304.8mm Shallow Mount Foundation
- 1219.2mm Above Ground Bollard Height, – Bollard Diameter 203.2mm
- Custom Decorative Colours Available
Approved by the U.S. Department of Defense.
Crash ratings range from ASTM F2656 07 M50 (K-12 DOS), K-4 (DOS equal to ASTM F2656 07 M30), to US Marshall Service standards.
