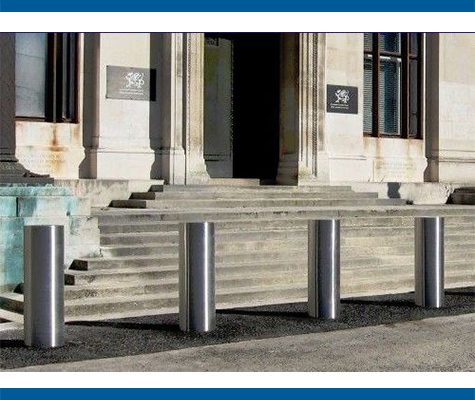

High Security Bollards FB30 Fixed and Removable Design
LAPS high security bollards / Hostile Vehicle Mitigation Bollards (HVM) PAS68 rated.
Ideally suited for protecting entry points to large commercial buildings and government facilities against acts of terrorism.
Shallow Mounted Bollard Systems.
A shallow mount bollard system can be installed in concrete ranging from 305mm to 406.4mm depending on the level of protection required.
Fixed Or Removable Bollard Design
FB30(fixed)Â / RB30 (Removable)
Shallow Mount Fixed Bollard
Fixed in Situ bollard.
Engineered To Meet US Marshall Service Standards /PAS68 rated for 7.5T @ 80km/hr, must be installed to our specified engineered footing in an array of 5 or more bollards.
– PAS68: V/7,500(N2)/80/90:5/14
– Allowance made for Stainless Steel Sleeves – Marine Grade 316 Linished Level 4 finish
– Footing Depth – 150mm + Blinding Slab + 100mm allowance for FFL (Shallow mount Foundation)
1016mm Above Ground Bollard Height, – Bollard Diameter 203.2mm
Custom Decorative Colours Available or stainless steel marine grade 316 finish, level 4
Shallow Mount Removable Bollard
Engineered to perform against an impact of up to 7.5T @ 64km/hr, must be installed to our specified engineered footing in an array of 3 or more bollards.
– 305mm diameter
– Allowance made for Stainless Steel Sleeves – Grade 316 Linished Level 4 finish.
– Footing Depth – 112mm Shallow Foundation Plate & 280mm Socket + 100mm allowance for FFL
- Fixed Or Removable Bollard Design
- Fixed in Situ bollard.
- Engineered To Meet US Marshall Service Standards /PAS68 rated for 7.5T @ 80km/hr, must be installed to our specified engineered footing in an array of 5 or more bollards. – PAS68: V/7,500(N2)/80/90:5/14 – Allowance made for Stainless Steel Sleeves – Marine Grade 316 Linished Level 4 finish
- – Footing Depth – 150mm + Blinding Slab + 100mm allowance for FFL (Shallow mount Foundation)
- 1016mm Above Ground Bollard Height, – Bollard Diameter 203.2mm
- Custom Decorative Colours Available or stainless steel marine grade 316 finish, level 4
- Engineered to perform against an impact of up to 7.5T @ 64km/hr, must be installed to our specified engineered footing in an array of 3 or more bollards. – 305mm diameter – Allowance made for Stainless Steel Sleeves – Grade 316 Linished Level 4 finish. – Footing Depth – 112mm Shallow Foundation Plate & 280mm Socket + 100mm allowance for FFL
Size: 100 x 150
Fixing Type: Commercial
Finish: New
Colour: Grey
