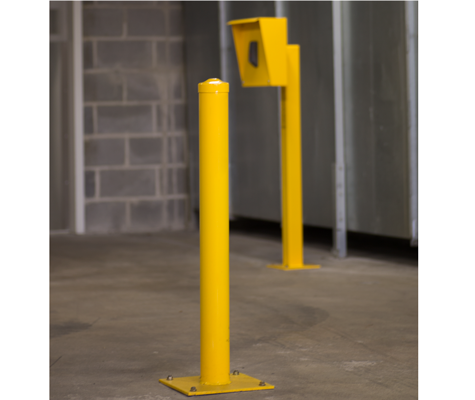

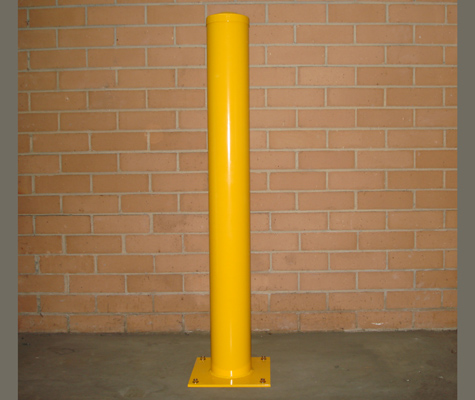

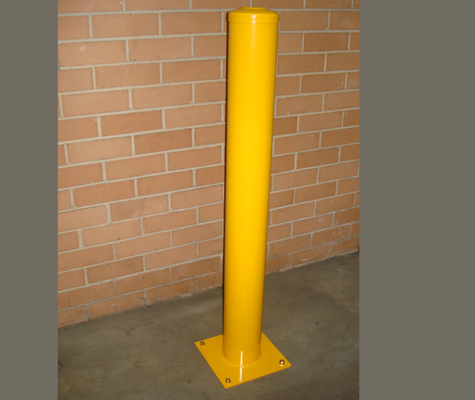

Commercial Baseplate Surface Mounted Fixed Bollards
Our commercial bollards are designed various security functions including vehicle threats, protecting people and property and some are suitable for anti-terrorist projects. Originally designed to protect buildings, plant equipment these have a robust and sturdy design. They are fully galvanised pipe and vinyl or powder-coated to in a variety of finishes. The commercial range is designed for both commercial and industrial premises.
Specification details are available within the Downloads and Resources tab on this page
Size: Various
Fixing Type: Masonry Anchor
Finish: New
Colour: Galvanised or electrostatically powder coated in black or industrial yellow / Vinyl Finish
Material

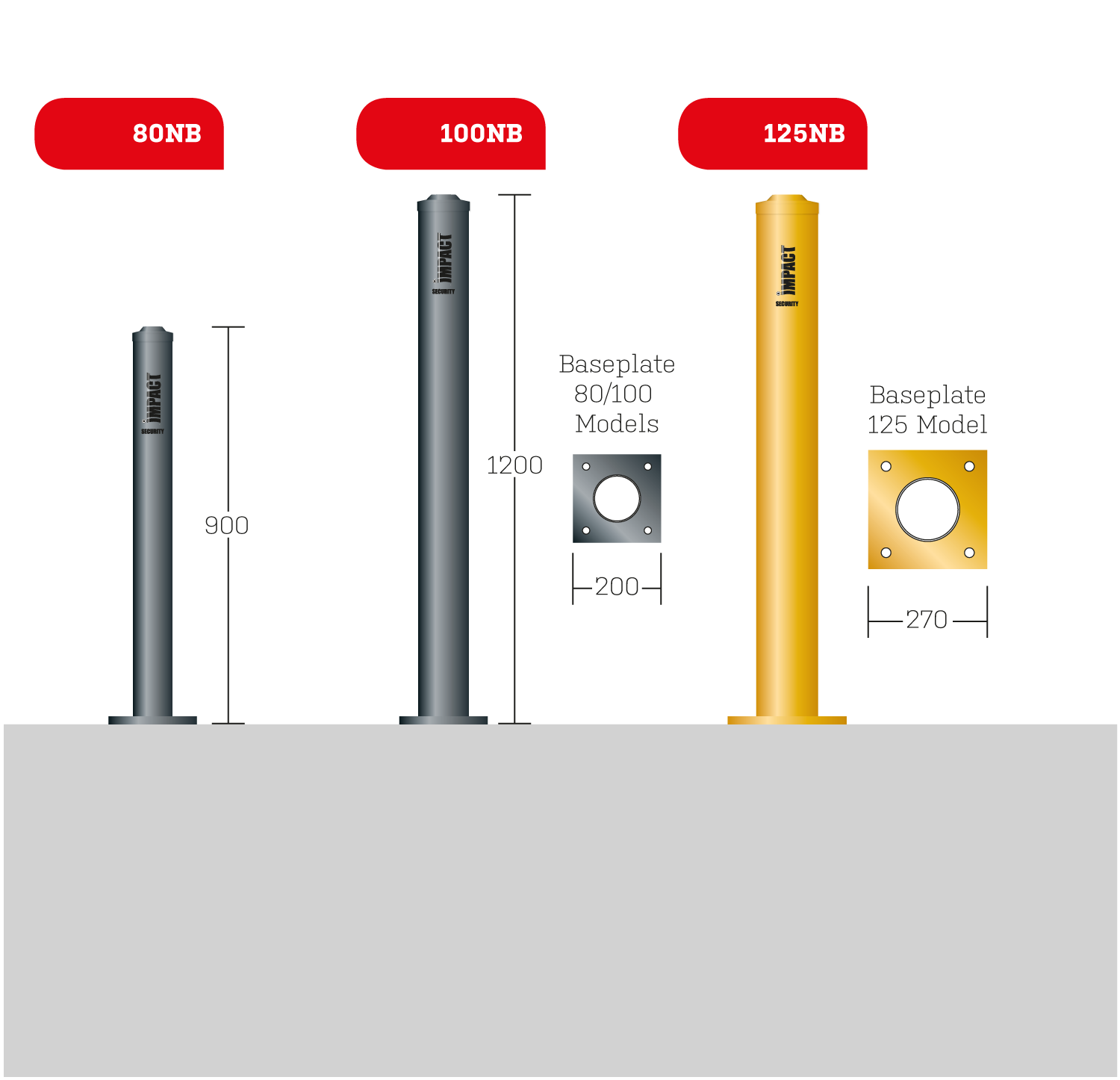

- 80NB (88.9) x 4.9mm HD steel pipe
- 100NB (114.3) x 5.4mm HD steel Pipe
- 125NB (139.7) x 5.4mm HD steel pipe
- 150NB (165.1) x 5.4mm / 11.0 mm HD steel pipe
- 200NB (219.1) x 4.8mm HD steel pipe
- 300NB (323.9) x 6.35mm HD steel pipe
Finish
- Galvanised or electrostatically powder coated in black or industrial yellow
- Optional range of colours available on request
You may also be interested in
The construction range of baseplate surface mounted fixed bollards are a budget friendly alternative to the commercial/industrial range of bollards.
LAPS is proud to be distributing and installing High Security Bollards, also known as Hostile Vehicle Mitigation Bollards (HVM)
Shallow Mounted Bollard Systems.
A shallow mount bollard system can be installed in concrete ranging from 305mm to 406.4mm depending on the level of protection required.
LAPS is proud to be distributing and installing High Security Bollards, also known as Hostile Vehicle Mitigation Bollards (HVM)
Shallow Mounted Bollard Systems.
A shallow mount bollard system can be installed in concrete ranging from 305mm to 406.4mm depending on the level of protection required.
FB120
PU40 Shallow Mount
- Fixed Bollard Only
- Tested to ASTM F2656 07 M50 (K12) 6803.88 kg, 80.46 km/h, less than 1m penetration
- 406.4mm Shallow Mount Foundation
- 965.2mm Above Ground Bollard Height, – Bollard Diameter 254mm
- Custom Decorative Colours Available
Approved by the U.S. Department of Defense.
Crash ratings range from ASTM F2656 07 M50 (K-12 DOS), K-4 (DOS equal to ASTM F2656 07 M30), to US Marshall Service standards.
The Maverick lighting bollard range provides an alternative style to the commercial range of bollards.
Manufactured as a lighting bollard from aluminium, it can be matched with our fixed and locking removable range to provide a uniform consistency on your project.
For installations that require impact rated security bollards, we have the HIT (high impact threat) range of bollards, these can be covered with a polyethylene sleeve in the maverick design.
See Resources and Downloads tab for additional information.
The Maverick bollard range provides an alternative look to the commercial range of bollards.
Available for manufacture in two materials, aluminium and steel. The steel model is available in a heavier gauge steel for applications that require a higher security.
For installations that require impact rated security bollards, we have the HIT (high impact threat) range of bollards, these can be covered with a polyethylene sleeve in the maverick design.
See Resources and Downloads tab for additional information.
